Mercury PNP 1UZ-FE with Audi Ignition Coils

Spitronics Mercury Advance ECU with PNP engine wiring loom for Toyota 1UZ-FE engine with Audi r8 ignition coil

R12,050.00

Add Idle Control Module

Add USB Communication Cable

Add 3 Pin Rectangular Alternator Connector

Quantity

facebook

PAYMENT
We accept card payments via the Payfast portal
SHIPPING OPTIONS
Door to Door
Counter Pickup
Store Pickup
100% Original and Authentic Brands

Description
Product Details

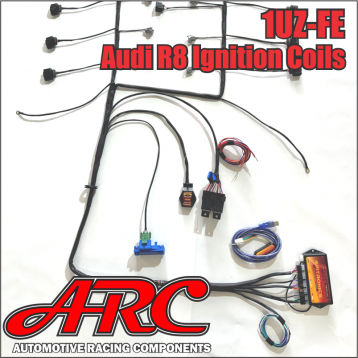

Spitronics Mercury Advance ECU with PNP engine wiring loom for Toyota 1UZ-FE engine with Audi r8 ignition coil conversion. Wiring loom is manufactured with new connectors and covered in heat shrink, no cheap insulation tape here.

Kit Consists of:

-Spitronics Mercury Advance ECU. Preloaded with firmware and base map.

-PNP engine wiring loom which is terminated for
-- 8x Injector
-- 8x VW / Audi 4 Pin Ignition coil
-- CAS
-- TPS
-- ECT
-- IACV (Optional Extra)
-- 3 Pin Rectangular Alternator (Optional Extra)

- MAP Sensor

- Spitronics 36-1 trigger wheel to replace original 12 tooth wheel
- Spitronics IACV module (Optional Extra)

Does not include chassis related wiring, eg Alternator, starter motor or dash temperature sensor. ECU will be preloaded with firmware and a good base map, but like any other aftermarket ecu will require final tuning once installed. We bench run every ecu / loom before shipping. No Sensors included, OE sensors will have to be reused.

Note: Actual product may differ from the image displayed. Ignition coils not included. Approx 4 working day lead time required to manufacture after payment clears into our account. Engine shown as representation of wiring loom position and layout. Ignition coils not included.
