Badger Lite PNP 1UZ-FE

Spitronics Badger Lite ECU with PNP engine wiring loom for Toyota 1UZ-FE engine with twin distributor ignition

R9,550.00
Add Idle Control Module
  • Yes
  • No
Add USB Communication Cable
  • Yes
  • No
Quantity

  • PAYMENT PAYMENT

    We accept card payments via the Payfast portal
  • SHIPPING OPTIONS SHIPPING OPTIONS

    Door to Door
    Counter Pickup
    Store Pickup
  • 100% Original and Authentic Brands 100% Original and Authentic Brands

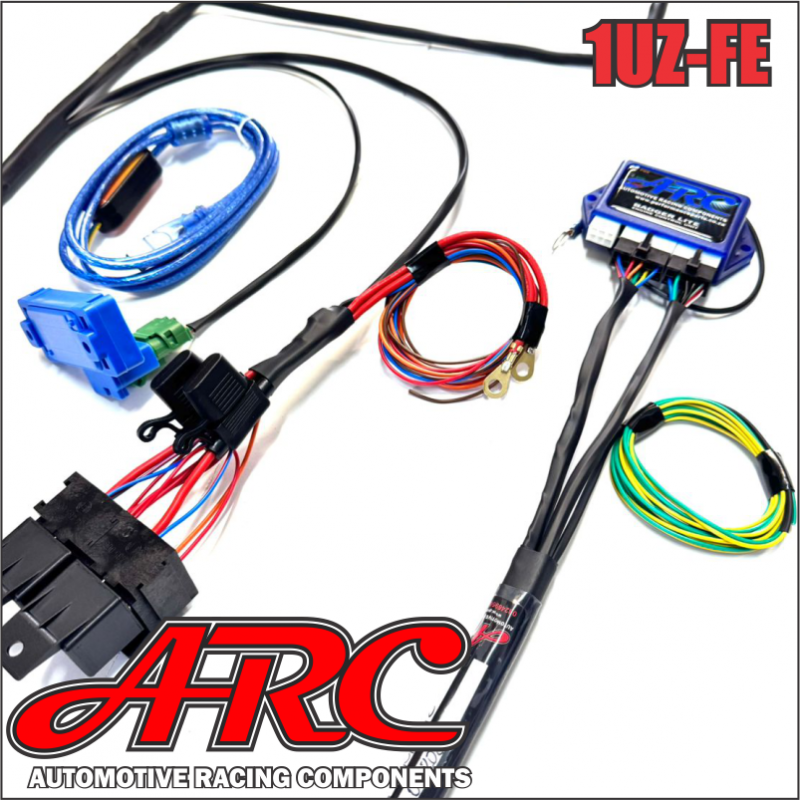

Spitronics Badger Lite ECU with PNP engine wiring loom for Toyota 1UZ-FE engine with twin distributor ignition. Wiring loom is manufactured with new connectors and covered in heat shrink, no cheap insulation tape here.

Kit Consists of:

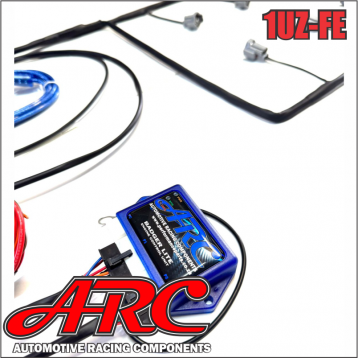

-Spitronics Badger Lite ECU. Preloaded with firmware and base map.

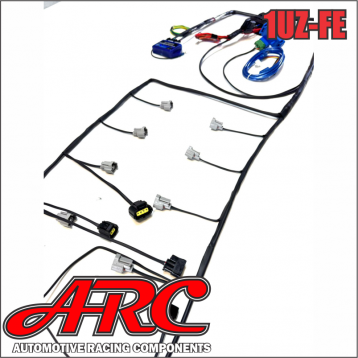

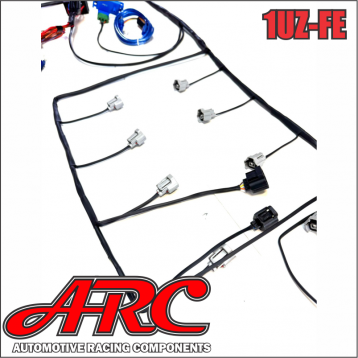

-PNP engine wiring loom which is terminated for
-- 8x Injector
-- 2x Ignition Coils
-- CAS
-- TPS
-- ECT
-- IACV (Optional Extra)
-- Map Sensor 3 bar (sensor included)

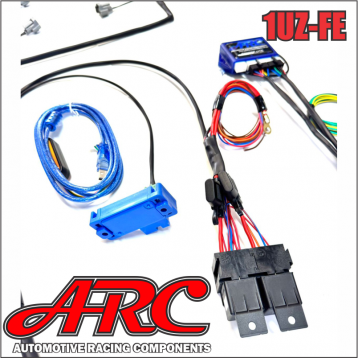

-- 2x EFI Relays

- MAP Sensor

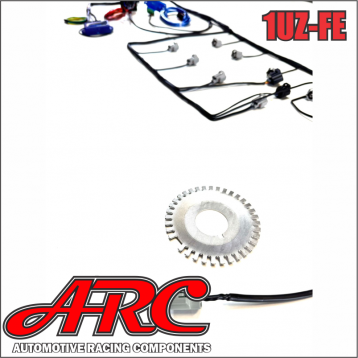

- Spitronics 36-1 trigger wheel to replace original 12 tooth wheel
- Spitronics IACV module (Optional Extra)

Does not include chassis related wiring, eg Alternator, starter motor or dash temperature sensor. ECU will be preloaded with firmware and a good base map, but like any other aftermarket ecu will require final tuning once installed. We bench run every ecu / loom before shipping. No Sensors included, OE sensors will have to be reused.
ECU features
-- 2x Ignition Outputs. Direct fire of the twin ignition coils. (Cannot be converted to coil on plug)
-- 4x Injector Outputs. Split sequential injection
-- 1x GPO for radiator fan relay
-- 1x Idle air control valve output, does require optional extra IACV module
-- Crank angle sensor input
-- Engine coolant temperature input
-- Throttle position sensor input
-- Manifold pressure sensor input
-- AFR input which can be wired to an external wide band controller 0-5v signal (Wide band controller not included, AEM X series preferred)

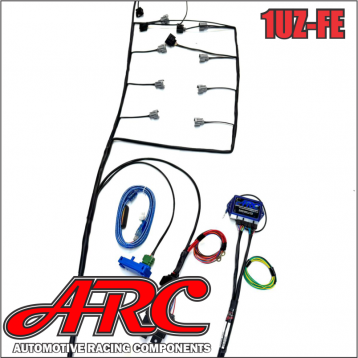

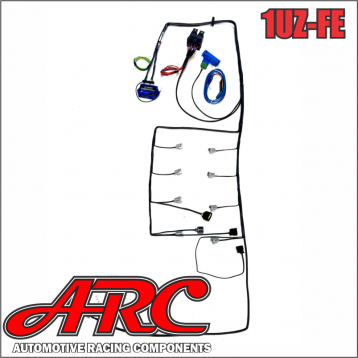

Note: Actual product may differ from the image displayed. Ignition coils not included. Approx 4 working day lead time required to manufacture after payment clears into our account. Engine shown as representation of wiring loom position and layout.
